Description

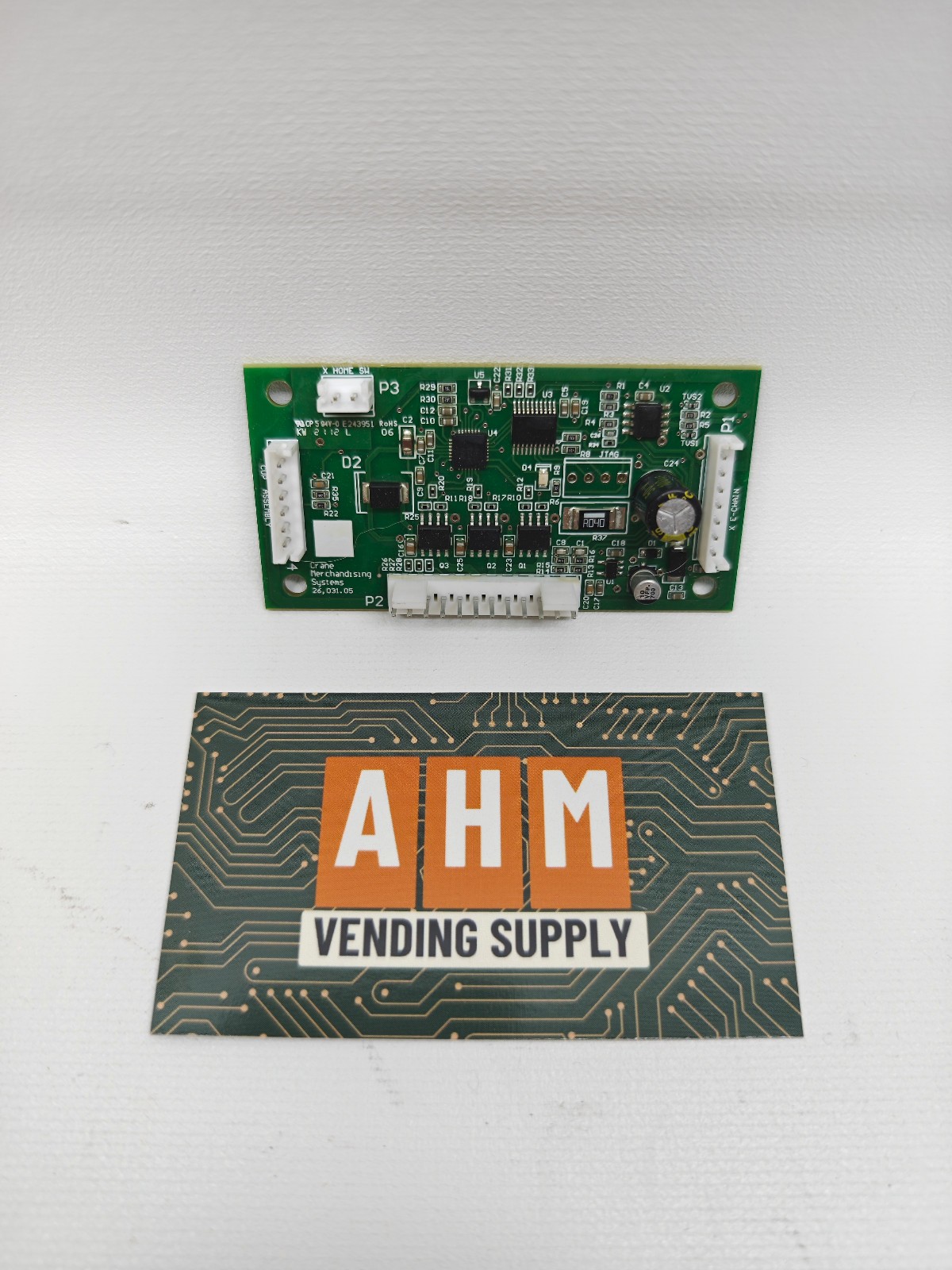

Genuine Dixie Narco / Crane BevMax 4 Refresh XY motor control board, pulled from a working 3800 glassfront soda vending machine. This is the board that drives the picker cup’s X/Y motion — it handles the X-axis home switch, the X energy-chain harness, and the cup assembly drive. Board is clean with no corrosion, no burnt components, no lifted traces or damaged connectors. Connectors present: X Home Switch (P3), X E-Chain (P1), Cup Assembly, and the main motor harness (P2).
Compatibility:
This XY motor control board fits Dixie Narco / Crane BevMax 4 Refresh glassfront soda vending machines:
- Dixie Narco 3800-4 Refresh (BevMax 4)
- Dixie Narco 5800-4 Refresh (BevMax 4)
IMPORTANT – Verify Before You Buy:
This is the Refresh-generation XY board (Crane Merchandising Systems). The XY/picker boards changed across BevMax generations, so match your board’s connector layout and labeling (X HOME SW / X E-CHAIN / CUP ASSEMBLY) to this one before ordering to guarantee fitment.
Condition: Used – Good. Pulled from a working machine, clean board, no damage.
Shipping: Ships boxed with anti-static and padding. Electronics are sensitive — packed to arrive safe.
