Description

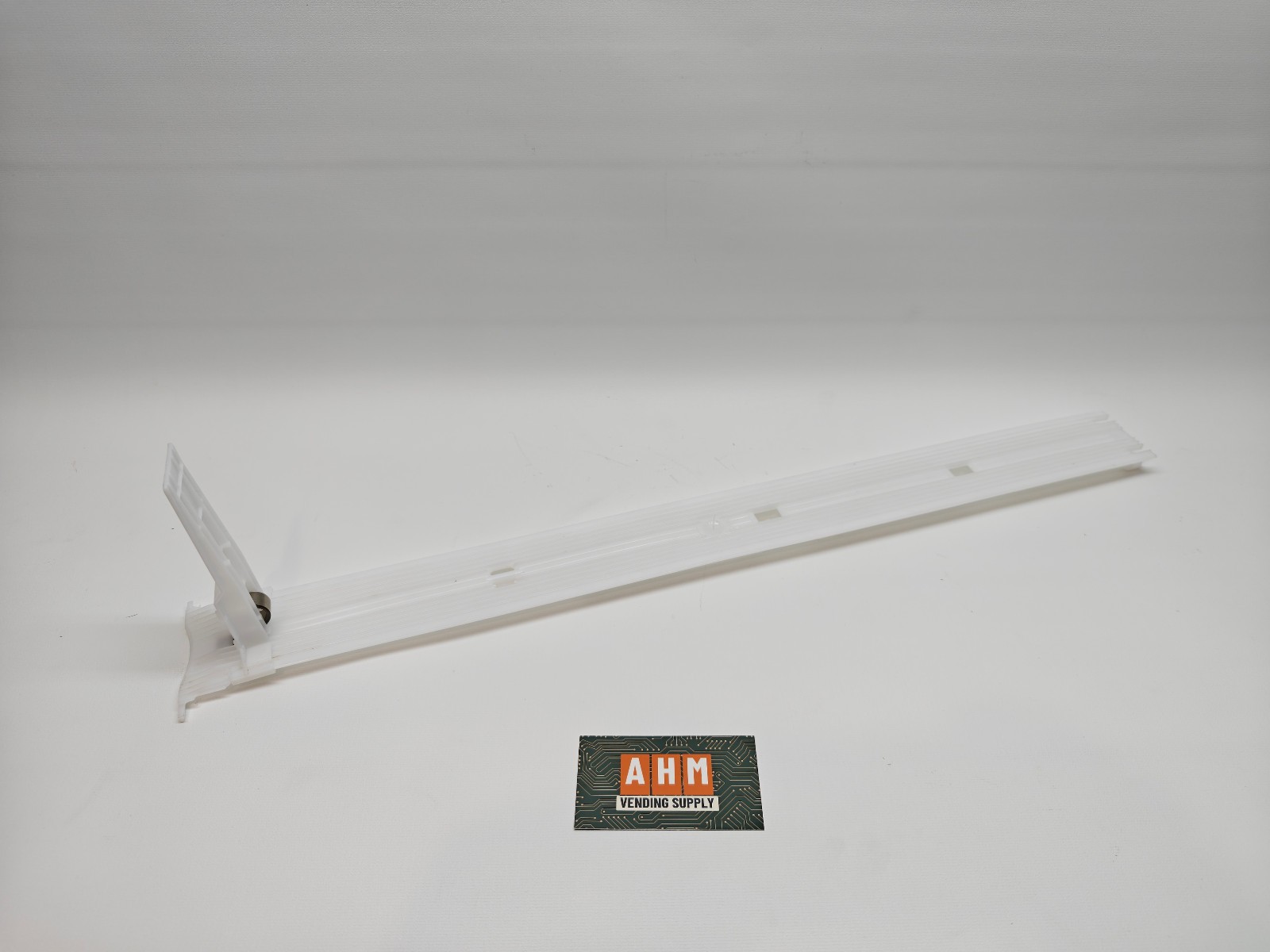

Genuine Dixie Narco / Crane BevMax tall product pusher with rigid slide, pulled from a working glassfront soda vending machine. This is the most updated revision of the slide-and-spring assembly, includes the slide, pusher, and spring, and comes fully assembled. The spring carriage retracts smoothly and the pusher tracks cleanly along the slide with no binding.
What This Part Does:
This is the rigid slide rail that mounts in a product column, with the spring-loaded pusher that keeps cans and bottles fed forward toward the front of the machine so the picker cup can grab the next product on each vend. The constant-force spring (the metal drum on the carriage) maintains forward pressure as the column empties.
Identifying Features:
- Tall (5″) pusher carriage — handles full-height bottles as well as cans
- Rigid white slide track with constant-force spring drum
- New-revision design (the current updated version, not the early short pusher)
- Fully assembled — slide, pusher, and spring all together as one unit
Compatibility:
This assembly fits all Dixie Narco / Crane BevMax glassfront soda machines from the older 2145 through the BevMax Media 6, and is recommended for all can and bottle sizes in these machines: Vendors Tech
- Dixie Narco 2145 / 3561 / 5000 / 5591
- Dixie Narco 3800 BevMax 2 / 3 / 4
- Dixie Narco 5800 BevMax 2 / 3 / 4
- Crane BevMax Media 6
Note on slim-can columns: If you’re vending 8.4oz / 12oz slim cans (Red Bull, Celsius), those columns also use a separate metal sleeve (CR0027655) that installs under the rigid slide. That sleeve is not included here.
Condition: Used – pulled from a functional machine. Slide rail is straight with no cracks or warping. Spring retracts with proper tension and the pusher carriage glides smoothly along the full length of the track. Some minor cosmetic wear consistent with normal service use. Functionally sound and ready to install.
What’s Included: One (1) tall product pusher with rigid slide — complete with slide rail, pusher carriage, and constant-force spring, exactly as pictured. No column sleeves, shims, or mounting hardware unless shown.
Shipping: Ships from St. Louis, MO. Packed carefully to protect the slide rail and spring from transit damage.
